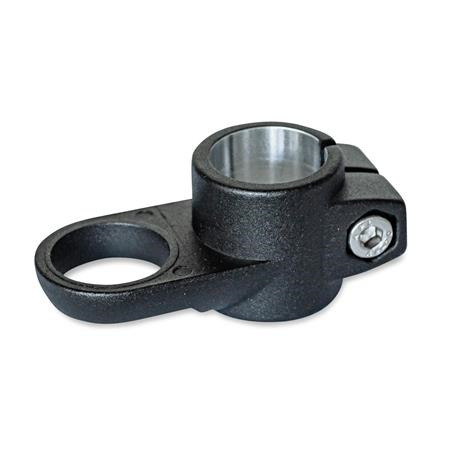

Sensor mounts SSP of die-cast aluminum have a slitted clamping point and a sensor bore, both machined by cutting methods.
The sensor bore allows attachment of sensors with male thread. It lies within a plane and parallel to the clamping point bore, which receives typically available construction tubes with full contact over the entire cross-section.
At the screw point, a hex socket cap screw or an adjustable hand lever reduces the bore cross-section for clamping.
Adjustable hand levers are intended for repeated, tool-free clamping. Under the designation HSK, these are available separately for individual use and in other designs. Compared with the tool-operated hex socket cap screw, the clamping force achievable with an adjustable hand lever is lower due to the shorter lever length.
